Global demand for energy storage is soaring—partly due to electric vehicles, portable electronics, and renewable energy needs—and a hunt for a safer, faster-charging, and sustainable alternative to lithium-ion batteries has intensified. As a result, dual-carbon batteries have become a highly promising option, with significant interest from scientists, sustainability champions, and next-gen battery makers. What if carbon is the key to the future of energy storage instead of lithium, cobalt, or nickel?
Dual-carbon batteries would represent a departure from existing chemistries. They can offer a recyclable, metal-free, and high-performing alternative to battery chemistry that challenges every aspect of today’s battery industry. But how realistic is a widespread adoption of dual-carbon batteries—and what technological advances are driving them closer to becoming a reality today?

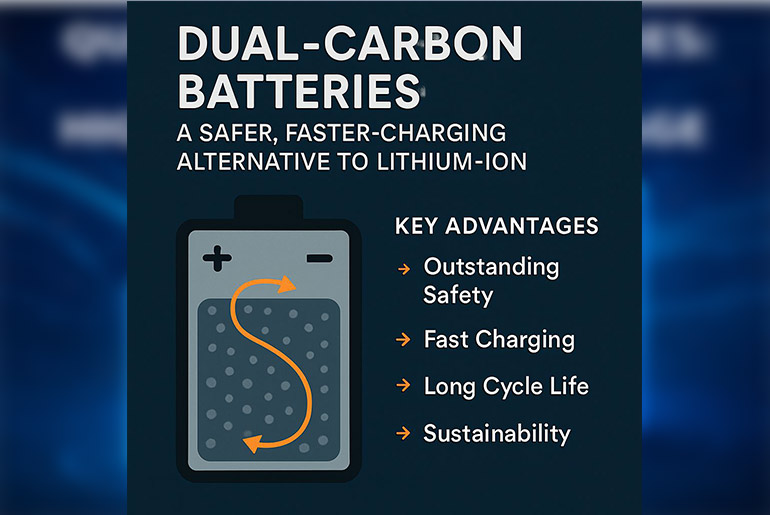

What are Dual-Carbon Batteries?
In its most basic form, dual-carbon batteries use carbon-based materials for both the anode and cathode, as opposed to lithium-ion batteries that generally use graphite for the anode and a metal oxide for the cathode (either lithium cobalt oxide or lithium iron phosphate).
The electrolyte in most dual-carbon systems is an organic or aqueous solution that facilitates ion movement, often based on lithium salts—but without the use of metals like cobalt, manganese, or nickel.
One of the most well-known types of dual-carbon batteries is the one developed by Power Japan Plus in partnership with Kyushu University, which uses a unique carbon material called Ryden carbon sourced from organic cotton. Their design enables fast ion transport, improved thermal stability, and excellent charge-discharge characteristics.
How Do They Work?
In dual-carbon batteries:
- During charging, lithium ions move from the carbon cathode to the carbon anode.
- During discharge, the ions travel back to the cathode, generating electricity in the process.
Because both electrodes are made of carbon, which is stable and structurally robust, the battery avoids the degradation pathways common in metal-based cathodes.
Carbon materials used include
- Graphite
- Activated carbon
- Graphene derivatives
- Biomass-derived carbons (like those made from coconut shells or cotton)
These materials provide high surface area, conductivity, and chemical inertness.
Key Advantages of Dual-Carbon Batteries
1. Outstanding Safety
Dual-carbon batteries are non-flammable and thermally stable by design. Their physical construction means they cannot experience thermal runaway, and they will not explode through physical damage or chagrin. This is especially important for EVs and grids.
2. Fast Charging
Some prototypes have already been able to be charged in as little as 10-15 minutes. Rapid ion transfer and less resistance in the carbon, means can implement this performance in the field.
3. Long Cycle Life
They generally last for 3,000 to 5,000 charge cycles with very little capacity loss, compared to many of the variants of lithium-ion ones.
4. Sustainability
Carbon is widely available, recyclable, and environmentally friendly. Dual-carbon batteries avoid mining challenges linked to cobalt, lithium, and nickel extraction, making them a greener choice.
5. Stable Voltage Output
They provide a stable output voltage throughout the discharge cycle, which is ideal for certain electronics and power management systems.
6. Recyclability and Non-Toxicity
Since there are no toxic heavy metals involved, recycling is easier and less hazardous.
Research and Development Highlights
▶ Power Japan Plus & Kyushu University (Japan)
Their Ryden dual-carbon battery boasts:
- 20x faster charging than lithium-ion
- Over 3,000 cycles
- No rare metals
- Stable performance at high temperatures
▶ University of Cordoba (Spain)
Researchers developed a dual-carbon prototype using activated carbon and graphene with aqueous electrolytes, showcasing a highly safe, low-cost energy storage device.
▶ National Cheng Kung University (Taiwan)
Explored high-surface-area mesoporous carbon for electrodes, achieving high specific capacity and improved energy efficiency.
Applications and use cases
• Electric Vehicles (EVs)
The fast-charge capabilities along with the safety profile of dual-carbon batteries is well suited for EVs. EVs have two main concerns, battery fires (safety) and the ability to charge all day (or quickly), the dual-carons battery out-weights this, although currently they do not have quite the energy density of some lithium-ion types (the gap is narrowing).
• Consumer Electronics
Phones, laptops, and wearables that require acutely fast charges and would last longer are good fits for dual-carbon configurations, especially if safety is important as in airline travel.
• Grid Storage and Renewable Integration
Due to their long cycle life and safety, dual-carbon batteries are excellent for stabilizing energy from solar or wind installations.
• Military and Aerospace
The resistance to thermal events and pressure changes makes these batteries suitable for demanding environments.
Challenges and Limitations
Although dual-carbon batteries show promise, they still have several challenges:
- Lower Energy Density: They remain lower than lithium-ion batteries in Wh/kg rating, making them unsuitable for long-range EVs or high-capacity electronics.
- Scaling Up Production: Creating consistent and scalable ways to manufacture carbon electrodes remains the biggest technical challenge.
- Electrolyte Optimization: Performance depends heavily on pairing with the right electrolyte; more research is needed on long-term electrolyte stability.
- Market Entrenchment: The dominance of lithium-ion technology makes it hard for alternatives to gain immediate traction.
Industrial Interest & Commercialization Potential
While still in early stages, several companies and government-backed initiatives are exploring commercial uses:
- Power Japan Plus is seeking OEM partnerships with automakers.
- Custom Cells (Germany) has begun prototyping dual-carbon configurations for aviation and defense.
- Toshiba has invested in exploring carbon-based hybrid chemistries combining lithium and carbon electrodes.
Government support is also increasing, with the European Union and Japan’s METI funding carbon battery research for sustainability and energy security.
The Road Ahead
For dual-carbon batteries to enter the commercial space, a number of developments need to come together:
- More advanced material engineering of carbon, such as doped graphene and mesoporous carbon, which have better performance, would permit higher energy densities.
- More innovative manufacturing capabilities that would permit roll-to-roll for electrode printing and use binderless carbon electrodes to provide a scalable and cost-effective production method.
- Hybrid designs, such as combining dual-carbon electrodes with new electrolyte systems or having some features of solid state to offset energy gaps with dual-carbon.
- Well-timed market entry, so that higher value, niche markets air or defense aviation or medical could be a launching pad.
As stakeholders from government and industry alike pursue better and safer green storage options, dual-carbon batteries hold great potential for offering a viable alternative aligned with global sustainability goals and safety regulations.
In a world looking to replace lithium-ion batteries, dual-carbon batteries offer a science-supported glimmer of hope. When their high safety, fast charge, long cycle life, and sustainable sourcing potential are considered, dual-carbon batteries offer hope for a cleaner energy future without rare earth element dependency and thermal risk.
While challenges remain to be addressed, innovation in material science manufacturing and hybridization are moving forward provide solutions for dual-carbon’s limitations. As the world embraces electrification and clean energy, dual-carbon batteries might not merely be a supplemental plan but the next significant battery technology.
